Chapter 9 Potentiometer & LED

We have already learned about the use of ADC and PWM. In this chapter, we will learn how to use a potentiometer to control the brightness of LED.

Project 9.1 Soft Light

In this project, we will make a soft light. We will use an ADC Module to read ADC values of a potentiometer and map it to duty cycle of the PWM used to control the brightness of a LED. Then you can change the brightness of a LED by adjusting the potentiometer.

Component List

  • ESP32-S3-WROOM x1

  • GPIO Extension Board x1

  • 830 Tie-Points Breadboard x1

  • Resistor 220Ω x1

  • Potentiometer(10k) x1

  • LED x1

  • Jumper Wire x5

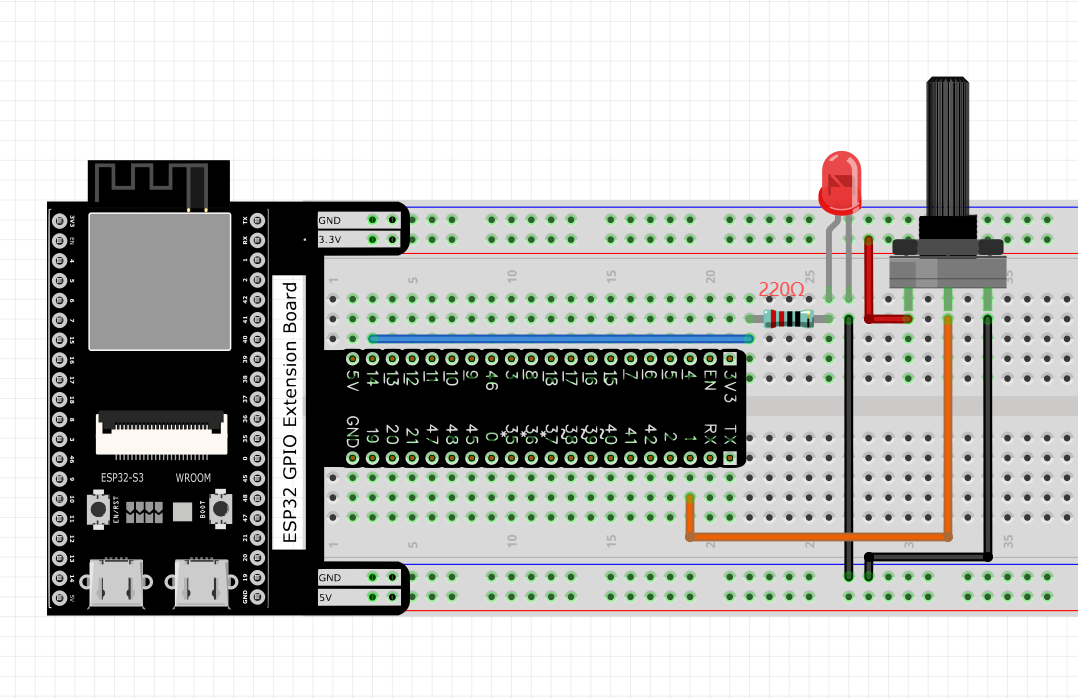

Connect

../_images/9.13.png

Code

Move the program folder “Basic_Starter_Kit_for_ESP32_S3/Python/Python_C odes” to disk(D) in advance with the path of “D:/Micropython_Codes”.

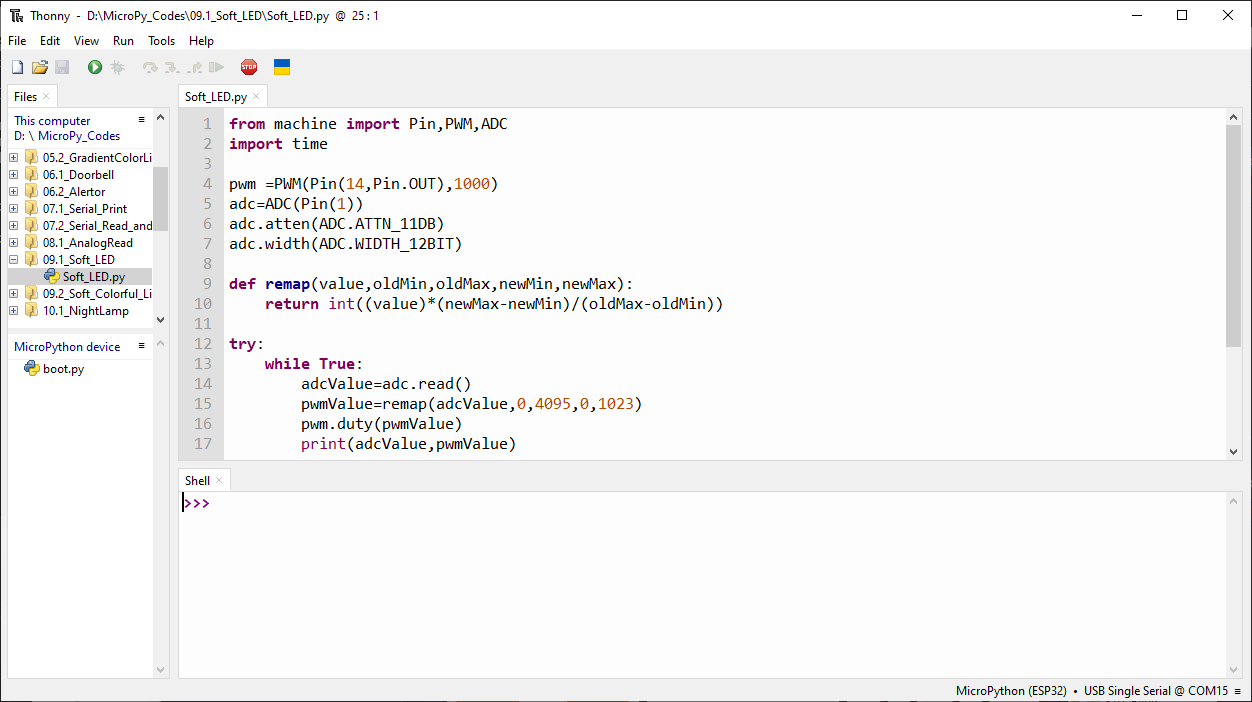

Open “Thonny”, click “This computer” >> “D:” >> “Micropython_Codes” >> “09.1_Soft_L ED” and double click “Soft_LED.py”.

09.1_Soft_LED

../_images/9.14.png

Click “Run current script”. Rotate the handle of potentiometer and the brightness of LED will change correspondingly.

The following is the code:

from machine import Pin,PWM,ADC
import time

pwm =PWM(Pin(14,Pin.OUT),1000)
adc=ADC(Pin(1))
adc.atten(ADC.ATTN_11DB)
adc.width(ADC.WIDTH_12BIT)

def remap(value,oldMin,oldMax,newMin,newMax):
    return int((value)*(newMax-newMin)/(oldMax-oldMin))

try:
    while True:
        adcValue=adc.read()
        pwmValue=remap(adcValue,0,4095,0,1023)
        pwm.duty(pwmValue)
        print(adcValue,pwmValue)
        time.sleep_ms(100)
except:
    pwm.deinit()

In the code, read the ADC value of the potentiometer. The ADC value range is 0-4095. However, the default input range of the duty() function is 0-1023. Therefore, we need to write a remap() function to map the read ADC value to a value that conforms to the input range of the duty() function.
